U10-5
COMPACT EXCAVATORS
MSRP AS LOW AS
$0.00

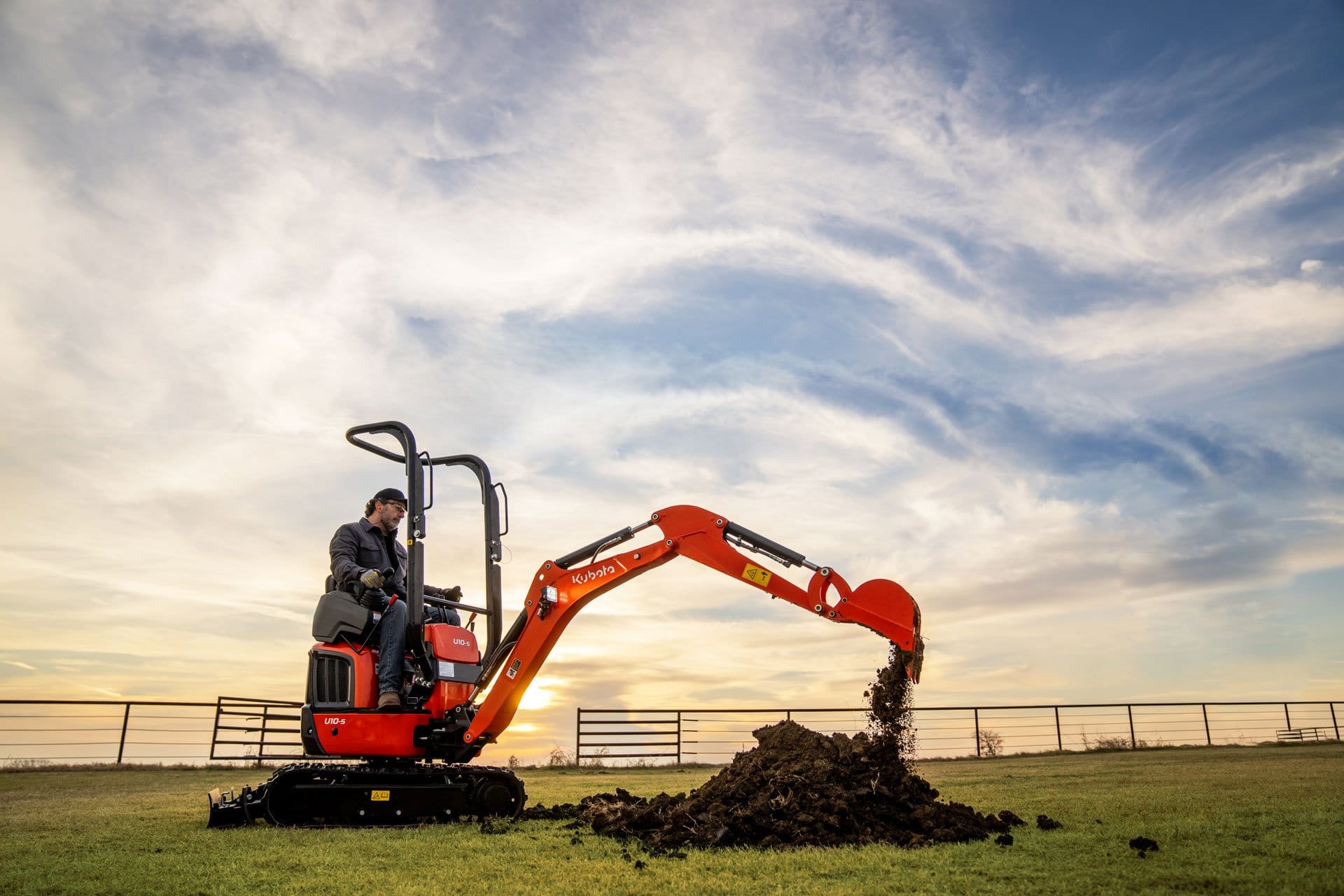

The Kubota U10-5 highlights a 10’ digging height and 5’ 11” digging depth, an incredible offering inside its ultra-compact frame. Kubota’s reputation for durability and operator comfort shine through in the U10-5 and you’ll also have access to an adjustable track range and standard two-speed for increased control. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 48 Months or Save up to $6,000 on Construction Equipment!
Construction
Save up to $6,000 or pay 0% A.P.R. for up to 48 Months with 0% Down on KX AND U SERIES!
EXCAVATORS
Specs & Compare
Compare models.
U10-5
HP
MSRP AS LOW AS
$0.00
Specifications
Arm Breakout Force, Lbs (kgf)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Blade Height, In (mm)
Blade Width, Ft (mm)
Bucket Breakout Force, Lbs (kgf)
Crawler Length, Ft (mm)
Displacement (cu. In.)
Engine Model
Fuel Reservoir, Gal (l)
Ground Contact Pressure Psi, Kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, Gal (l)
Min. Ground Clearance, In (mm)
Operating Weight, Lbs (kg)
Overall Height, Ft (mm)
Overall Length, Ft (mm)
Overall Width, Ft (mm)
Pump Capacity, G P M ( L P M)
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
Arm Breakout Force, Lbs (kgf)
1214 (550.6)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
5.5 (21.0)
Blade Height, In (mm)
7.9in (200)
Blade Width, Ft (mm)
3ft 3in / 2ft 6in (990 / 750)
Bucket Breakout Force, Lbs (kgf)
2337 (1060)
Crawler Length, Ft (mm)
4ft 5in (1340)
Displacement (cu. In.)
43.8
Engine Model
Kubota D722-E4
Fuel Reservoir, Gal (l)
3.2 (12.0)
Ground Contact Pressure Psi, Kgf (cm2)
4.2 (0.30)
Horsepower (gross)
10.3
Hydraulic Oil Reservoir / System, Gal (l)
3.3 / 4.5 (12.6 / 17.1)
Min. Ground Clearance, In (mm)
5.5in (140)
Operating Weight, Lbs (kg)
2646 (1200)
Overall Height, Ft (mm)
7ft 5in (2260)
Overall Length, Ft (mm)
9ft 9in (2980)
Overall Width, Ft (mm)
3ft 3in (990) / 2ft 6in (750)
Pump Capacity, G P M ( L P M)
2.8 (10.5) x 2
Traveling Speed: High, Mph (kph)
2.5 (4.0)
Traveling Speed: Low, Mph (kph)
1.2 (2.0)
